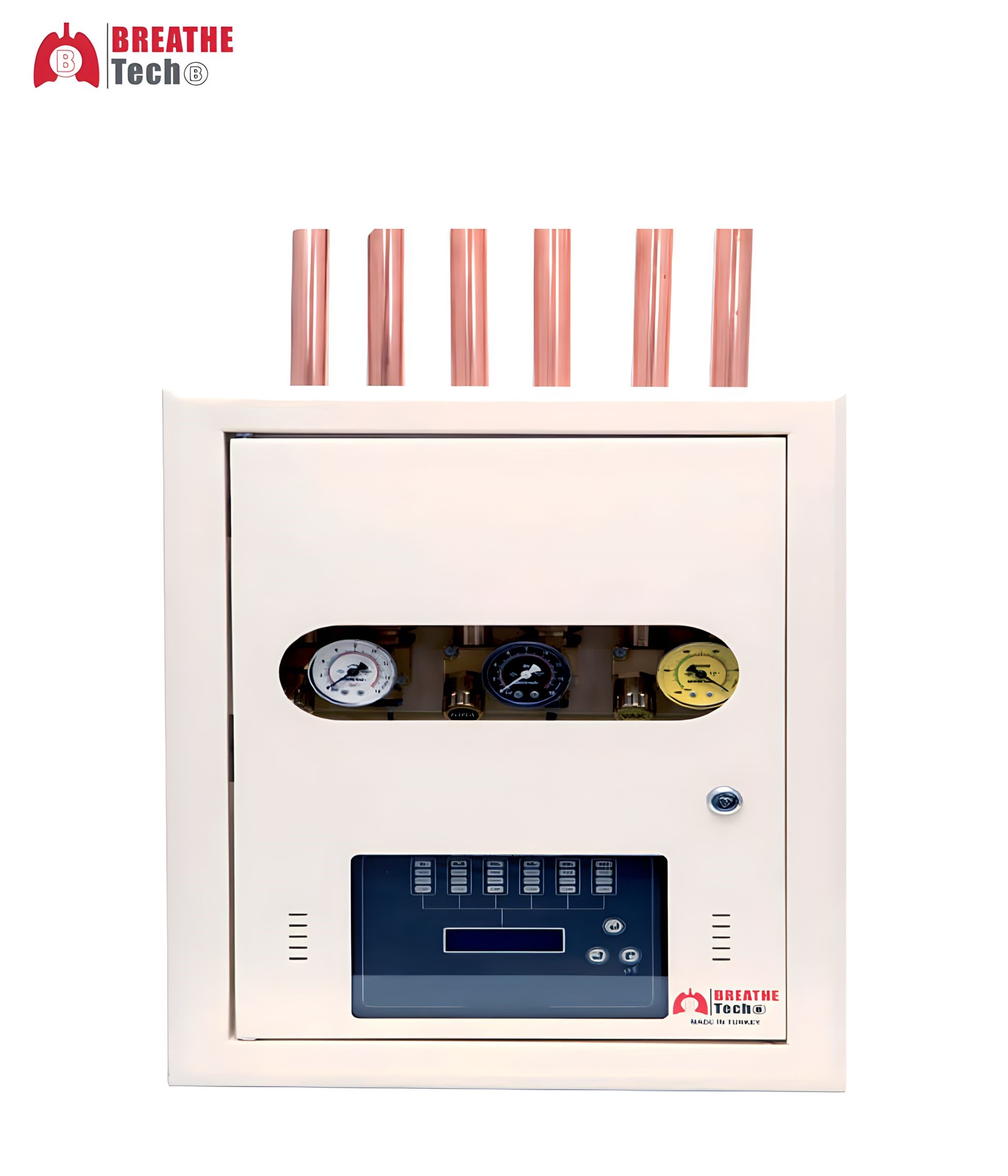

Area Gas Control Panels
Description Breathetech Gas Control Units are used in hospitals, medical areas, to monitor the pressure values of gas services and to cut the gas flow in emergency situations. Gas Control Units are produced in accordance with EN ISO 7396-1 and HTM 02-01. standards
Features • Controls 1 to 5 gases including vacuum • Locked hinged cover • Separate analogue manometers for each gas • Thanks to the window on the cover, analog manometers and digital alarms can be monitored. • Case and cover material are made of metal material&aluminium and coated with electrostatic paint. • Pressure plates are made of brass material and on-off valves are special for medical purposes. • Flush mounted and surface mounted variants are available. • On-off medical gas valves for each gas • There are low pressure sensors for each gas on the device
Gas Services • Oxygen • Medical Vacuum • Medical Air 4 bar • Surgical Air 7 bar • nitrous oxide • Carbon dioxide
| Explanation | Metal- Painted | Aluminium- Painted |
| With 1 gas with alarm | BR-VB-1 | BR-VA-1 |
| With 2 gas with alarm | BR-VB-2 | BR-VA-2 |
| With 3 gas with alarm | BR-VB-3 | BR-VA-3 |
| With 4 gas with alarm | BR-VB-4 | BR-VA-4 |
| With 5 gas with alarm | BR-VB-5 | BR-VA-5 |
ALARM DEVICE
is an advanced medical gas alarm system featuring a pressure sensor. Independent adjustment of pressure alarm values is possible through its practical control menu. It can be used in all pressure and vacuum system including medical gases and medical air. Pressure values can be directly tracked via the pressure sensor. Can be used for up to 5 gases
