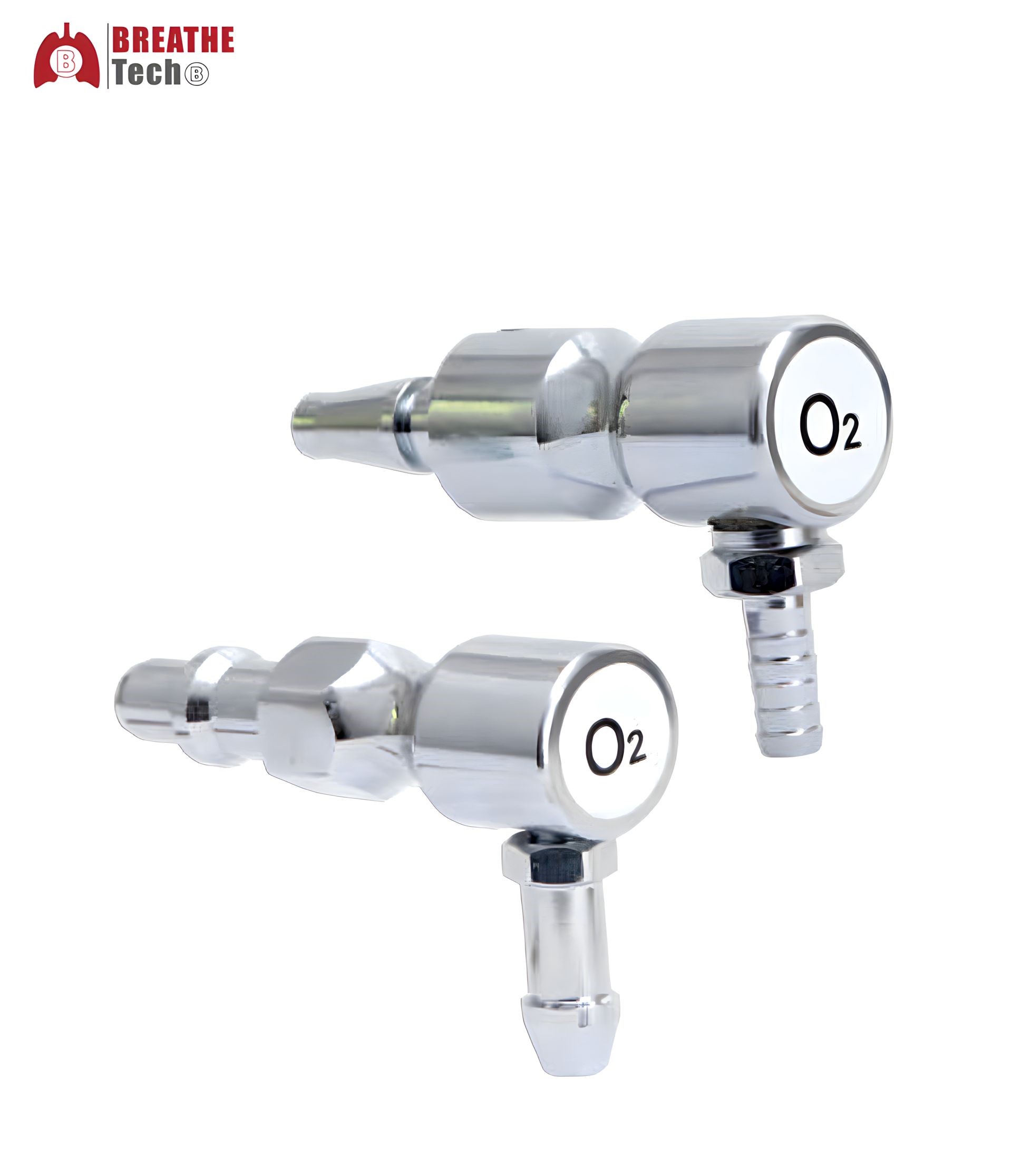

Probes
breathtech probes are produced according to international standards by usin a special labelling for gases. They are used to supply necessary gases from terminal units to the patient or medical equipments via hose connections or by direct connection to the equipment. Probes are manufactured in compliance with BS 5682:1992, DIN 13260, AFNOR NF S 90-116. • Manufactured according to BS, DIN ,AFNOR & DIS standard • Special connections for O2, N2O, AIR 4 and AIR 7 • Special labeling for each gas type • Safe hose connection • Made of chrome plated brass material
| Oxygen | Vacuum | Air 4 | Air 7 | N2O | CO2 | |
| BS | BR-PRO-BS | BR-PRV-BS | BR-PRH4-BS | BR-PRH7-BS | BR-PRN2-BS | BR-PRC2-BS |
| DIN | BR-PRO-DIN | BR-PRV-DIN | BR-PRH4-DIN | BR-PRH7-DIN | BR-PRN2-DIN | BR-PRC2-DIN |
| AFNOR | BR-PRO-NF | BR-PRV-NF | BR-PRH4-NF | BR-PRH7-NF | BR-PRN2-NF | BR-PRC2-NF |

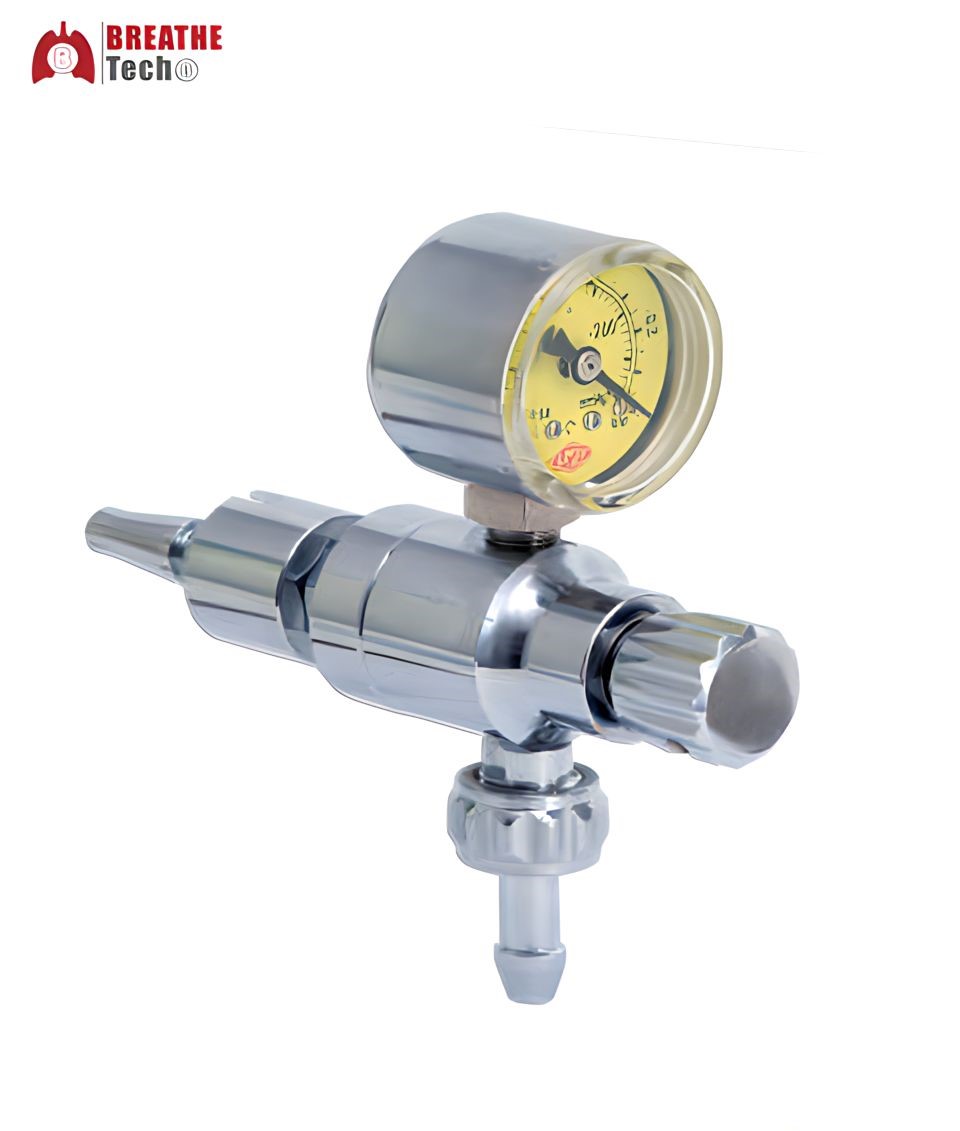

Probe With Manometre
• Chrome plated brass trunk • Flow adjustment knob • Pressure or vacuum gauge • Gas specific connection port • Suitable outlet for hose connection
| Gas Type | Oxygen | Vacuum | Nitrous Oxide | Air 4 | Air 7 |
| Without Adaptor | BR-PO | BR-PV | BR-PN | BR-PM4 | BR-PM7 |
| BS | BR-PO-BS | BR-PV-BS | BR-PN-BS | BR-PM4-BS | BR-PM7-BS |
| DIN | BR-PO-DIN | BR-PV-DIN | BR-PN-DIN | BR-PM4-DIN | BR-PM7-DIN |
| AFNOR | BR-PO-NF | BR-PV-NF | BR-PN-NF | BR-PM4-NF | BR-PM7-NF |
| DIS | BR-PO-DIS | BR-PV-DIS | BR-PN-DIS | BR-PM4-DIS | BR-PM7-DIS |

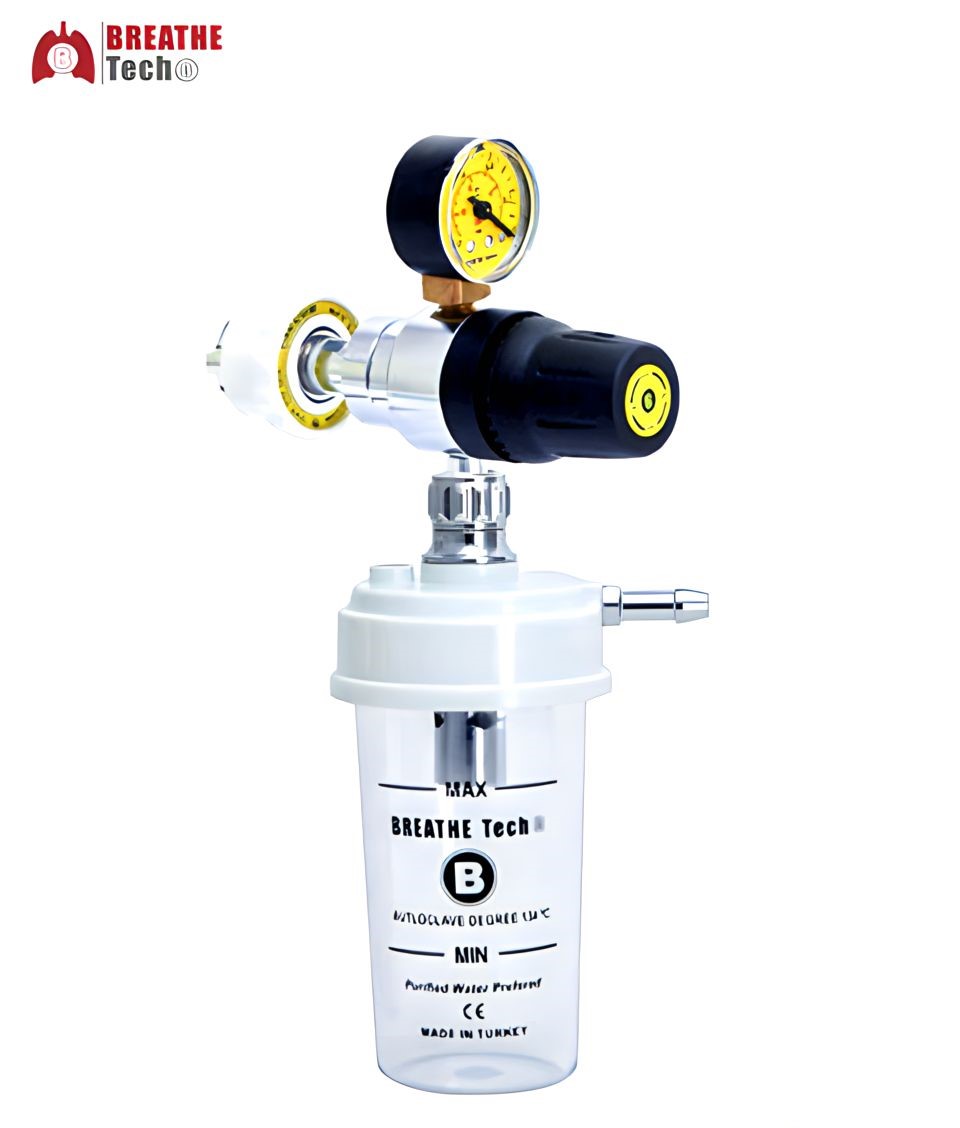

Vacuum Regulator
• On / Off lever for instant vacuum cut • Autoclavable safety jar to avoid fluid leakage into central vacuum line • Easy to read vacuum gauge • Flow adjustment knob
| Connection | Gas Type | Model No |
| Without Adaptor | Vacuum | BR-VR |
| BS | Vacuum | BR-VR-BS |
| DIN | Vacuum | BR-VR-DIN |
| AFNOR | Vacuum | BR-VR-NF |

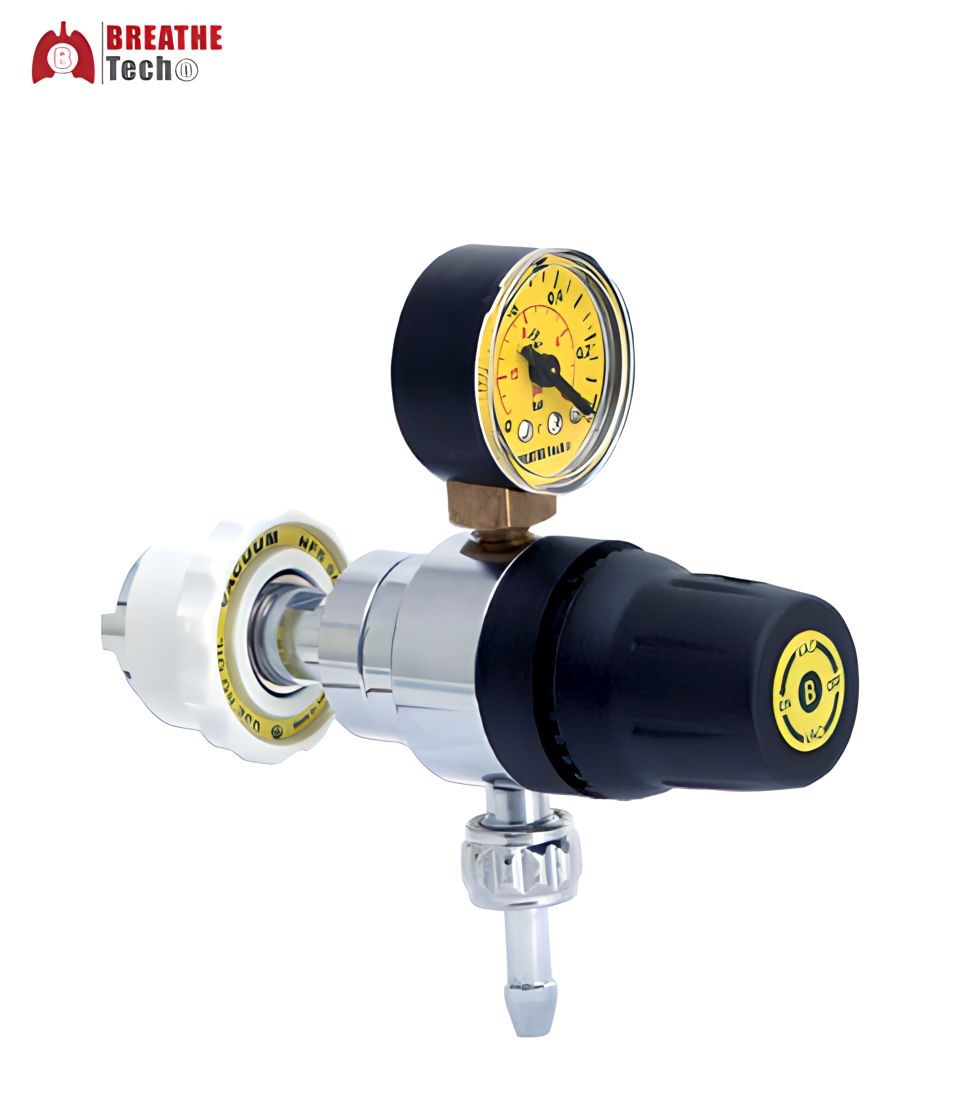

Vacuum Regulator
• On / Off lever for instant vacuum cut • Autoclavable safety jar to avoid fluid leakage into central vacuum line • Easy to read vacuum gauge • Flow adjustment knob
| Gas Type | BS | DIN | AFNOR |
| Oxygen | BR-VR-BS | BR-VR-DIN | BR-VR-NF |
| Vacuum | BR-VR-BS | BR-VR-DIN | BR-VR-NF |
| Air | BR-VR-BS | BR-VR-DIN | BR-VR-NF |

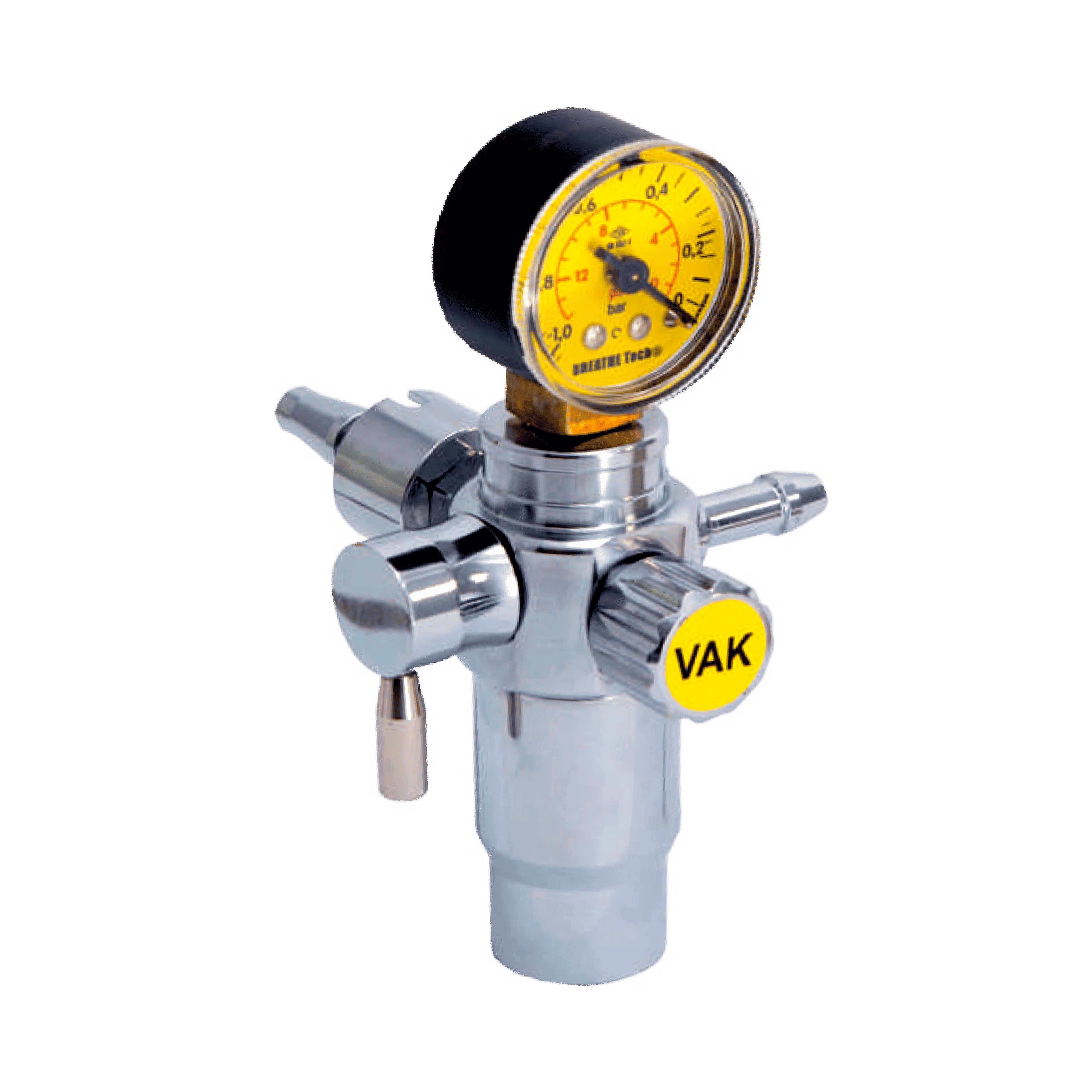

Venturi Type Vacuum Regulator
Designed to provide vacuum by using compressed air or oxygen source • Easy adjustment of vacuum pressure • Suction trap removing pollution caused by overflow • Chrome coated brass trunk • Avaliable in BS, DIN, AFNOR, DISS standa
| Gas Type | Medical Air |
| Without Adaptor | BR-VEN |
| BS | BR-VEN-BS |
| DIN | BR-VEN-DIN |
| AFNOR | BR-VEN-NF |
| DIS | BR-VEN-DIS |

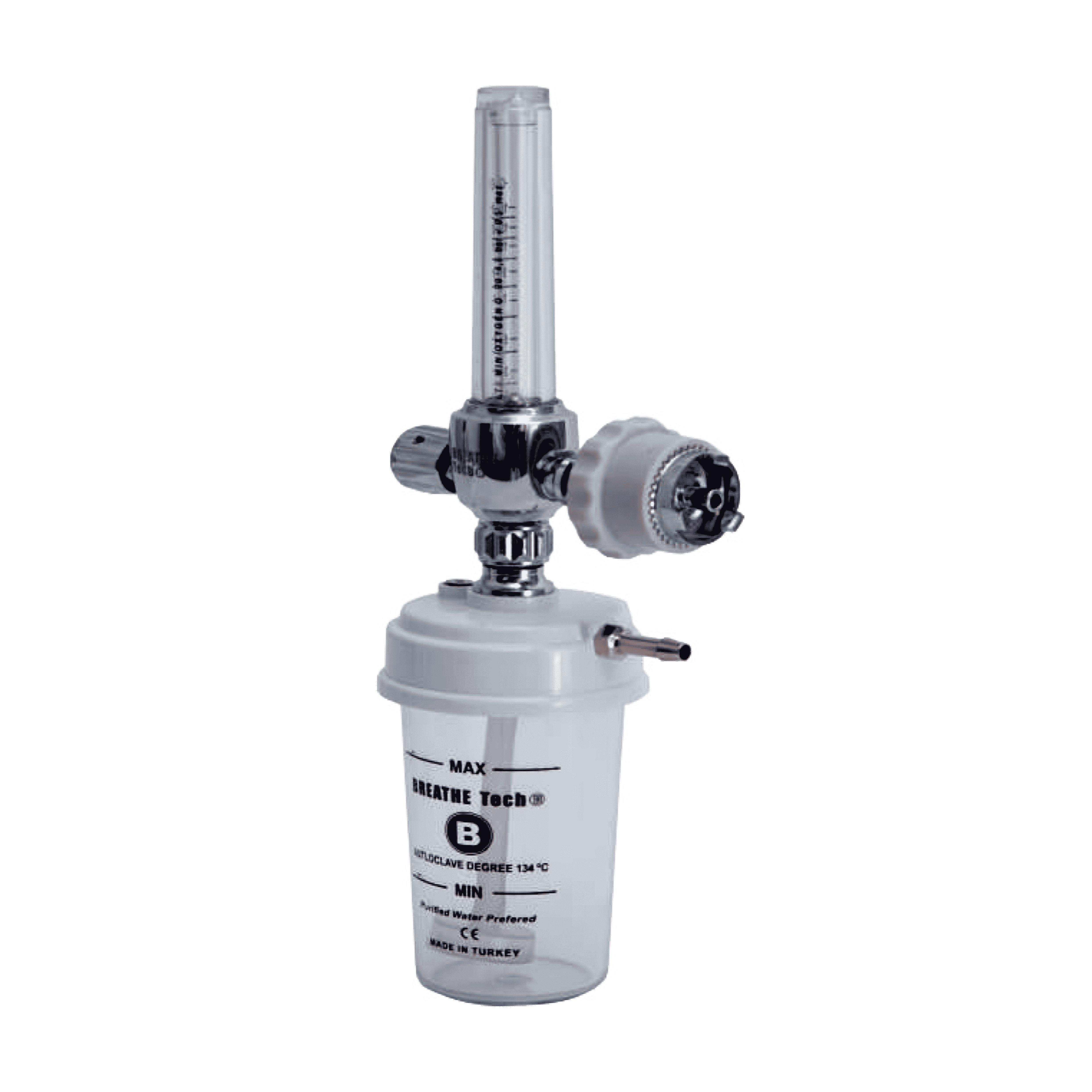

Flowmeters
The flowmeter is used to dose medical gases such as air or oxygen; it can be connected to the gas distribution system using suitable AFNOR NF S 90-116, DIN 13260-1, BS 5682 compliant probes or probes with a G 1/4" M R thread.
| Connection | Type | Gas | Model No |
| BS | Wall Type | Oxygen | BR-VEN-BS |
| DIN | Wall Type | Oxygen | BR-VEN-BS |
| AFNOR | Wall Type | Oxygen | BR-VEN-BS |
Size (LxWxH) : 80 x 48 x 145 mm Inlet : Whitworth GAS 1/8” Pressure : 4.2 Kgs/cm² – 60 psi – 414 kPa Flow Rate : 0 - 15 L/min Humidifier capacity : 200 m

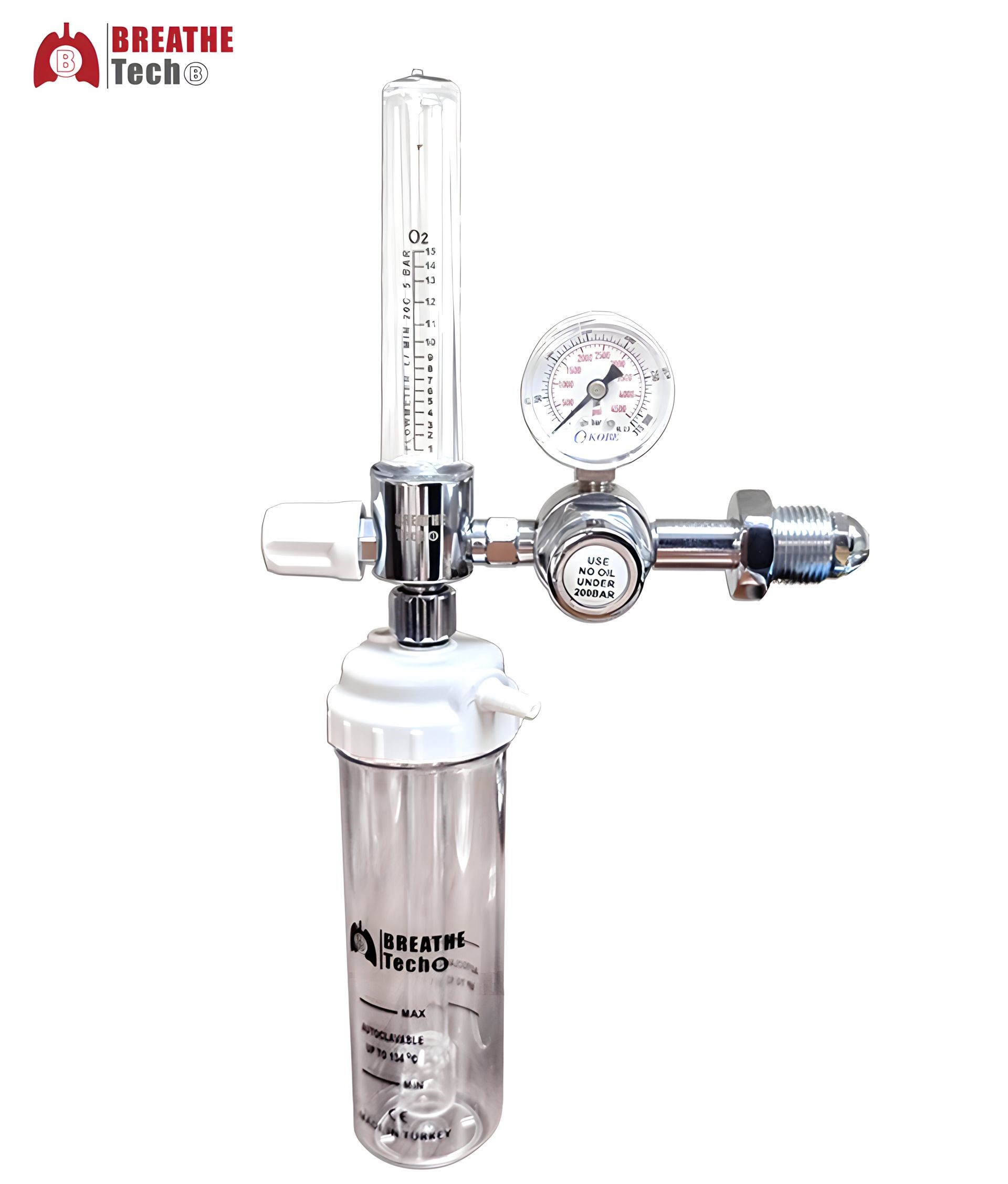

Oxygen Therapy Device
They are equipment used to regulate and humidify the pressure coming from high pressure oxygen cylinders. Oxygen therapy devices are specially designed for easy use. • Chrome plated body • High polycarbonate dripper for sterilization • Maximum gas supply: 230 bar • Regulator Output Pressure: 4-5 bar • Flow rate: 0 – 15 L/min • Display Range: 0 – 315 bar • Sterilization Method: 121 °C
