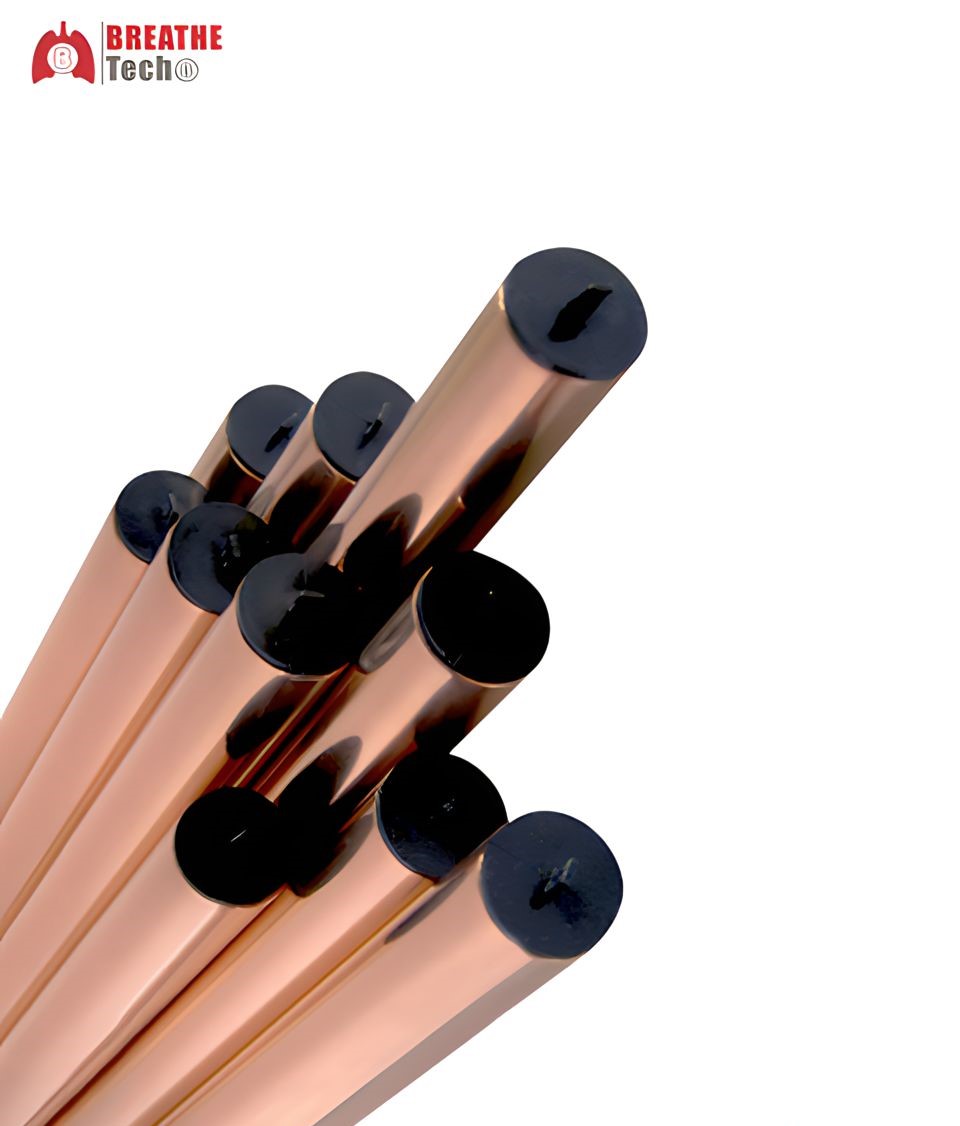

Medical Copper tubes
Breathtech degreased medical copper pipe is designed for use in medical gas pipeline system installations and is manufactured under strict quality control procedures to ISO 9001:2008. In addition, we also provide medical copper pipe fittings include elbow, reducing elbow, street elbow, 45° elbow, straight coupling, equal tee, fitting reducer, reducing tee, and reducing couple.
Specifications
Adopting continuous casting and rolling production process, high purity, fine structure, and low oxygen content. No porosity, trachoma, loose, good thermal conductivity, processability, ductility, corrosion resistance, and weather resistance. Easy to solder and braze. The product quality is stable, the pressure is high, the elongation rate is high, and the cleanliness is high, which meets the high cleaning requirements of the fluorine-free refrigeration equipment. Straight tube plastic film winding, can be plugged, can be loaded with wooden boxes
| Model No | Explanationn | Thicknesss | Working Pressure |
| BR-C08-10 | 8 mm | 1,0 mm | 185 bar |
| BR-C10-10 | 10 mm | 1,0 mm | 148 bar |
| BR-C12-10 | 12 mm | 1,0 mm | 123 bar |
| BR-C15-10 | 15 mm | 1,0 mm | 98 bar |
| BR-C20-10 | 22 mm | 1,0 mm | 67 bar |
| BR-C22-12 | 22 mm | 1,2 mm | 80 bar |
| BR-C22-15 | 22 mm | 1,5 mm | 100 bar |
| BR-C28-10 | 28 mm | 1,0 mm | 52 bar |
| BR-C28-12 | 28 mm | 1,2 mm | 62 bar |
| BR-C28-15 | 28 mm | 1,5 mm | 79 bar |
| BR-C35-10 | 35 mm | 1,0 mm | 42 bar |
| BR-C35-12 | 35 mm | 1,2 mm | 50 bar |
| BR-C35-15 | 35 mm | 1,5 mm | 63 bar |
| BR-C42-10 | 42 mm | 1,0 mm | 35 bar |
| BR-C42-12 | 42 mm | 1,2 mm | 42 bar |
| BR-C42-15 | 42 mm | 1,5 mm | 52 bar |
| BR-C54-10 | 54 mm | 1,0 mm | 25 bar |
| BR-C54-12 | 54 mm | 1,2 mm | 32 bar |
| BR-C54-15 | 54 mm | 1,5 mm | 41 bar |
| BR-C54-20 | 54 mm | 2,0 mm | 54 bar |
| BR-C76-15 | 76 mm | 1,5 mm | 29 bar |
| BR-C76-20 | 76 mm | 2,0 mm | 39 bar |
| BR-C08-25 | 108 mm | 2,5 mm | 34 bar |

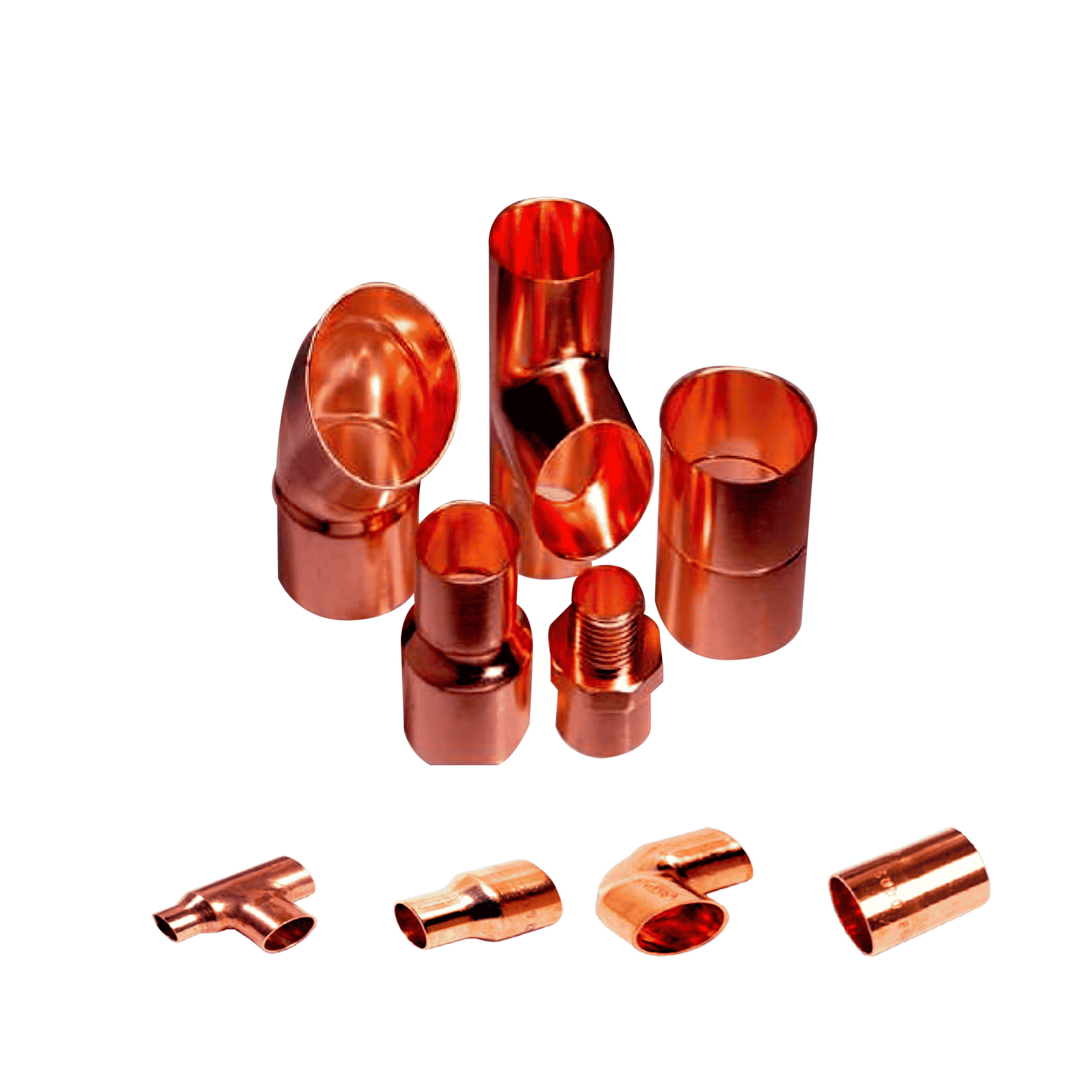

Medical copper fittings
Breathetech's end feed fittings, manufactured according to BS EN 1254-1; 1998 are seamless, monoblock fittings, which makes them stronger and easier to use. • Biostatic composition of the copper material inhibits bacterial growth on its surface • End connections: Copper x Copper • Lightweight, strong and corrosion resistant • Unaffected by sunlight, has no special storage requirements and does not produce toxic fumes in a fire. • All fittings supplied contain less than 100mg/m2 (0.01mg cm2) of hydrocarbons on the degreased surface.
| Elbow 90° | Coupling | |
| 8 mm | BR-E08 | BR-C08 |
| 10 mm | BR-E10 | BR-C10 |
| 12 mm | BR-E12 | BR-C12 |
| 15 mm | BR-E15 | BR-C15 |
| 22 mm | BR-E22 | BR-C22 |
| 28 mm | BR-E28 | BR-C28 |
| 35 mm | BR-E35 | BR-C35 |
| 42 mm | BR-E42 | BR-C42 |
| 54 mm | BR-E54 | BR-C54 |
| 76 mm | BR-E76 | BR-C76 |
| Inegal Tee | Inegal Tee |
| 10x12x10 mm | |
| 10x15x10 mm | |
| 12x15x12 mm | |
| 15x12x15 mm | |
| 15x22x15 mm | |
| 22x15x22 mm | |
| 22x28x22 mm | |
| 22x35x22 mm | |
| 28x15x28 mm | |
| 28x22x28 mm | |
| 28x35x28 mm | |
| 35x15x35 mm | |
| 35x22x35 mm | |
| 35x28x35 mm | |
| 42x15x42 mm | |
| 42x22x42 mm | |
| 42x28x42 mm | |
| 42x35x42 mm | |
| 54x22x54 mm | |
| 54x28x54 mm | |
| 54x35x54 mm | |
| 54x42x54 mm |
